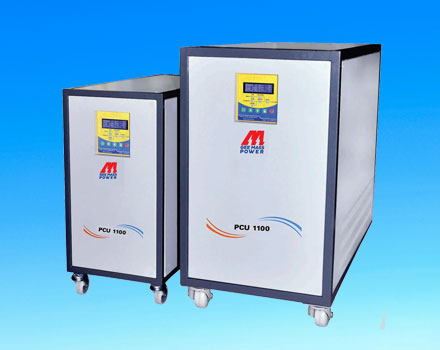

Solar Off grid 1KW to 15 KW
1 KVA to 15 KVA
- Hybrid Design
- High Efficiency Design
- True Bi-directional Solar Inverter
- Four Line LCD Display
- DSP Controlled System
- Inbuilt MPPT Charge Controller
- Output Transformer for reliability
Solar offgrid UPS

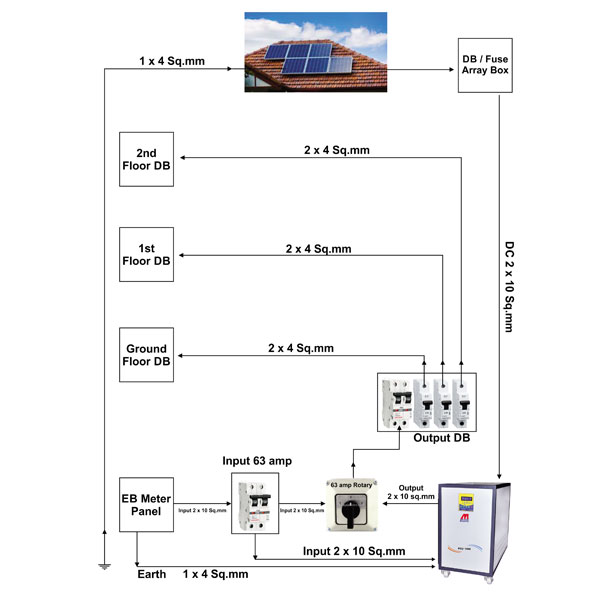

GG Solar PCU Optimizes the distribution of the generated Solar energy from your Roof Top. The GGSolar PCU includes both energy generation and energy storage system ensuring backup Power Supply during the day and night. The battery is charged through Solar alone or Solar and Grid Shared mode.
Once the Solar Power is good and the battery voltage is above the specific value, Hybrid function will start automatically. Your load will run through Solar Power and remaining Solar Power will Charge the battery.
In case of any power cut in night time battery backup will support the load. This intelligent energy management will be taken care byGG Solar PCU.
Optional: Solar PCU also available with Grid Export & Grid Sharing Features.
Technical Specification
| Model | GG 1100 |
| System Rating in KW | 1-3 KW | 4 KW | 5 KW | 6 KW | 7.5 KW | 10 KW | 12.5 KW | 15 KW |
| MPPT Range | 60-90V | 120V | 130-160V | 240V |
| Maximum PV Power Recommended (KW) | 3.3 | 4.4 | 5.5 | 6.6 | 8.2 | || | |3.7 | |6.5 |
| MPPT BASED CHARGE CONTROLLER | |
| Switching Element | DSP CONTROLLER |
| Type of Charger | PWM with MPPT |
| GRID INPUT | |
| Input Supply | 230 VAC, 50Hz (-20%, +15%) 1 Phase 2 Wire |
| BATTERY | |
| Battery Voltage | 48V | 96V | 120V | 180V |
| Optional Battery Voltage | 48-96V | 48-180V | 120-180V | 144-180V |
| Grid Through Battery Charging Capacity (% KW Rating) | 0-100% |
| INVERTER | |
| Switching Element | MOSFET/LGBT | LGBT |
| Control | DSP Controlled |
| Change Over Time | <=10msec |
| Nominal Output Voltage, Frequency (Hz) | 230 VAC, 50Hz (-20%, +15%) 1 Phase 2 Wire |
| Output Waveform | Sine Wave |
| Load Power Factor | 0.6 lag to 1 (with in KVA and KW Rating) |
| Voltage Regulation | ±2% |
| Output Voltage Distortion with 100% Linear Load | ≤3% |
| Inverter Peak Efficiency | >85% | >90% |
| Enclosure Protection | IP 20 |
| Dimension (LxBxH in mm without Wheel) | 620x260x550 | 760x330x580 |900x450x700 |
| Cooling | Forced Air |
| Galvanic Isolation | Inbuilt Isolation Transformer at Inverter Output |
| Protections | MCB (or) Fuses for Grid, PV Array, Battery, Output |
| Display Parameter | Solar Power, Solar Units, Solar Voltage, Solar Current, Battery Voltage, Battery Current, Inverter Voltage, Grid Voltage, Output Voltage, Load %, Input Frequency, Output Frequency, Float Voltage, Boost Voltage, Heat sink Temperature |
| Metering Status Display LED Indication | Solar, Grid, Inverter, Battery |
| LED Indication | Solar Ok, Grid Ok, Load on Grid, Inverter Ok, Battery Ok, Output Ok |
| Fault Indication | The above LED’s will Blink |
| Fault Display & Protection | O/P Over (V), DC Under (V), Over Temperature, O/P Over Load, DC Over (V), Short Circuit |
| Operating Temperature | 0-50 °C |
| Communication Interface (Optional) | Remote Monitoring through Cloud Integrated M2M |
