Air Cooled – Oil Cooled

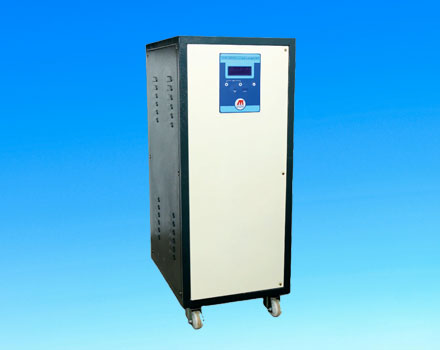

Air Cooled (1 KVA to 75 KVA)
We are one of the leading manufacturers and supplier of Servo Stabilisers (micro processor based) that delivers constant voltage irrespective of input (EB) voltage. This comes with surge & spike suppressor, line conditioning technique. Our Servo stabilisers can be classified into Air Cooled Stabilisers and Oil Cooled Stabilisers. While an air cooled stabiliser is generally used for areas with power capacities less than 100 KVA. Oil cooled stabiliser can be used in industries where dust and flammable particles like cotton dust, foundry dust, etc., are very high, oil cooled stabilisers should be used even for lower capacities to prevent fire accidents and to attain trouble free

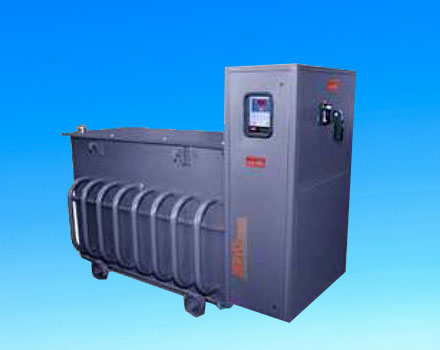

Oil Cooled (9 KVA to 500 KVA)
Applications of Servo Stabilisers:
The unending list includes: CNC machines, engineering industries, modern textile machineries, medical equipments, hotels & restaurants, multiplexes, malls & apartments, educational institutions, lighting loads, lifts & elevators, air conditioning equipments, factories, hospitals, IT companies & BPO’s, gymnasiums, photocopying centres (Xerox centres), DTP centres, Corporate buildings & offices, retail showrooms, restaurants, theatre projectors, etc.,
| Available Types | Air Cooled | Oil Cooled |
| Capacity | 1 KVA to 75 KVA | 9 KVA to 500 KVA |
| Range | Normal range – 170 V to 270 V in Single Phase 295 V to 465 V in Three Phase Wide range – 140 V to 270 V in Single Phase 245 V to 465 V in Three Phase | Normal range – 170 V to 270 V in Single Phase 295 V to 465 V in Three Phase Wide range – 140 V to 270 V in Single Phase 245 V to 465 V in Three Phase |
| Output Range | 230 V +/- 1% for Single Phase | |
| Correction rate | 25/35 V per sec. | 25/35 V per sec. |
| Environment | Indoor | Indoor & Outdoor |
| Working Temp | 0 – 50 Degree | 0 – 55 Degree |
Applications
Applications
- Centralised Buildings
- CNC Machines
- Textile machines - Spinning, Weaving, Knitting,
- Embroidery, Garments manufacturing
- Printing machines
- Medical Equipment
- Food Processing machines
- Air Conditioning
- Lifts
Comprehensive Protection
Comprehensive Protection
- Under / Over voltage trip
- Electronic Overload trip
- Single phasing protection
- Phase reversal protection
- Manual service bypass for emergencies
- Emergency stop for safety
Also Available
Also Available
- 1 phase Servo Stabilisers
- 3 phase Residential Servo Stabilisers
- Isolation Transformer
- Stabilisers with built - in Isolation Transformers
- Step up / Step down Transformers
Technical Specification
| Parameter | 3 Phase Unbalanced Air cooled | 3 Phase Unbalanced Oil cooled |
| Rating (KVA) | 3-100 | 3-500 |
| Type of cooling | Air | Oil |
| Input voltage range | 295V to 470V, 240V to 470V, 340V to 500V |
| Output voltage | 415 (380V/400V – optional) |
| Output Voltage Regulation | 1% of nominal output voltage |
| Input frequency range | 47Hz – 53Hz |
| Efficiency | >97% |
| Output frequency | 50Hz ± 0.2% |
| Effect of Load Power Factor | Nil |
| Waveform Distortion | Nil |
| Type of Servo Control | Micro Controller based True RMS sensing and correction |
| Servo Motor Drive | Triac based drive for AC Step Synchronous motor |
| Under/ Over Voltage cutoff * | Electronic cutoff |
| Overload cutoff | CT based Electronic cutoff |
| Short circuit protection | MCB / MCCB / Fuse provided upto 100 KVA. For 100-500 KVA HRC fuse (MCCB optional) |
| Single phasing prevention | Provided |
| Phase Reversal Trip | Provided |
| Stabiliser bypass | Air Cool – Provided up to 100 KVA, 3-phase; Optional > 50 KVA |
| Emergency Off Switch | Provided |
| Display Type | 2 /4 Line LCD Panel |
| Parameters displayed | Input & Output Voltages (Line & Phase), Output Currents & Frequency |
| Working Temperature | 0 to 50 Degree |
| Insulation | Class ‘B’ |
| Output Waveform | Same as input |
| Correction Rate | 25 / 35 V per Second |
| Relative Humidity | 60 % |
| Environment | In door & Out door |
Technical Specification
- Single Phase Air Cooled - 1 KVA - 15 KVA
- Three Phase Air Cooled - 3 KVA - 100 KVA
- Three Phase Oil Cooled - 3 KVA - 500 KVA
RANGE
- Normal Range - 170 V - 270 V (Single Phase), 295 V - 470 V (Three Phase)
- Wide Range - 140 V - 270 V (Single Phase), 240 V - 470 V (Three Phase)
- Extra Wide Range* - 110 V - 270 V (Single Phase), 200 V - 470 V (Three Phase)
